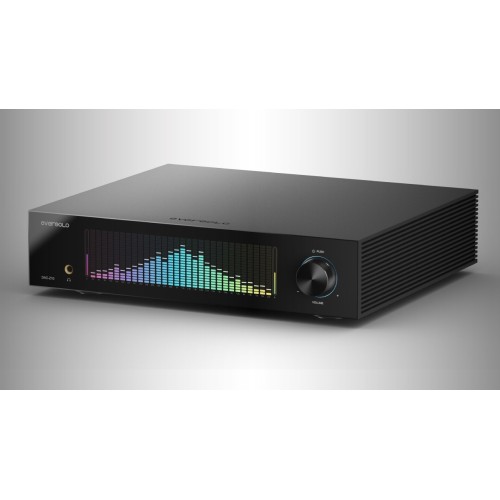

Eversolo DAC Z10 DAC Built for Authenthic sound and finest detail of sound

The DAC-Z10 is built on Eversolo’s Fully Isolated Architecture (FIA), which completely separates the digital and analog domains to minimize interference and preserve signal purity. Three independent linear power supplies individually power the left channel, system, and right channel, allowing each to operate in an ultra-low-noise environment. Its decoding architecture features two sets of AK4191 + AK4499 DACs for independent left and right channels, combined with a fully balanced analog preamplifier that employs precise dual-channel R2R volume control. This configuration achieves superior DNR and lower THD+N, unlocking the full potential of the music.




R2R Volume ControlThe DAC-Z10 employs a precise R2R resistor array for volume control, preserving the original signal at every level. From quiet listening to full volume, every nuance remains intact, delivering clean, accurate, and faithful sound.Fully Balanced Preamplifier




The DAC-Z10 features a high-performance fully balanced preamplifier, supporting both XLR and RCA analog inputs with up to +10dB gain. Paired with a precision R2R analog volume control network, it delivers ultra-low noise and distortion, significantly enhancing dynamic range and signal integrity, allowing every nuance of the music to be reproduced with clarity and authenticity.


Technical Specification:
Model Eversolo DAC-Z10
Display 8.8" IPS
Chassis Material Aluminium alloy
Main Processor DCP8568
DAC Left Channel: AK4191+AK4499
Right Channel: AK4191+AK4499
Audio Processor Multi-core USB audio processor
OPA Chip OPA1612
Power Triple ultra-low noise linear power supplies
Bluetooth Audio Input Qualcomm QCC5125 Bluetooth module, Bluetooth version: BT5.0; supports SBC/AAC Bluetooth audio protocols
USB-B Audio Input Compatible with Windows 10 and above, macOS, Android, and iOS; supports up to Stereo DSD512 / PCM 768kHz 32Bit
IIS Input Supports 8 mode configurations, up to Stereo DSD512 / PCM 768kHz 32Bit
AES/EBU Input Up to Stereo PCM 192KHz/24Bit / DSD64 DoP
Optical Audio Inputs *2 Up to Stereo PCM 192KHz/24Bit / DSD64 DoP
Coaxial Audio Inputs *2 Up to Stereo PCM 192KHz/24Bit / DSD64 DoP
ARC Input Up to Stereo PCM 192KHz/24Bit
Analog Audio Inputs XLR (Balanced), RCA
Analog Audio Outputs Pre-out: XLR (Balanced), RCA; Headphone out: 6.35mm single-ended
External Clock Input Supports 10M/25M clock inputs with 50Ω or 75Ω impedance
Recommended Headphone Impedance 16–300Ω (Low Gain: 16–32Ω / High Gain: 32–300Ω)
