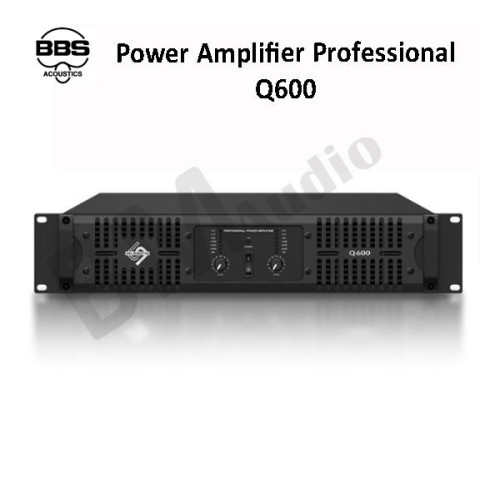

BBS Q600 2-Channel Professional Power Amplifier – High Power Series

Features:

- Novel and unique exterior design, professional and aesthetically pleasing

- Supports stereo/parallel/mono bridge modes

- User-selectable input sensitivity

- Equipped with abundant input and output interfaces

- Each channel features LED indicators for clear operational status visibility

- Comprehensive protection circuit design to effectively prevent system damage

Specifications:

- Channels: 2

- 8 ohm Stereo (per channel): 600W

- 4 ohm Stereo (per channel): 900W

- 8 ohm Bridged: 1800W

- Protection Features: DC protection, short-circuit protection, current-limiting voltage protection, thermal protection, ultrasonic protection

- THD (20Hz–20kHz, 1W): <0.03%

- Signal-to-Noise Ratio: >100dBA

- Channel Separation (Crosstalk at 1kHz): >70dB

- Frequency Response (1W @ 8ohm): 20Hz–20kHz, ±0.5dB

- Damping Factor: >400

- Input Impedance (Balanced/Unbalanced): 20k ohm /10k oh,

- Amplifier Gain: 37dB

- Analog Inputs: 3-pin XLR (with 2×3 audio link output), electronically balanced

- Output Connectors: 4-pole Speakon per channel + one pair of binding posts
