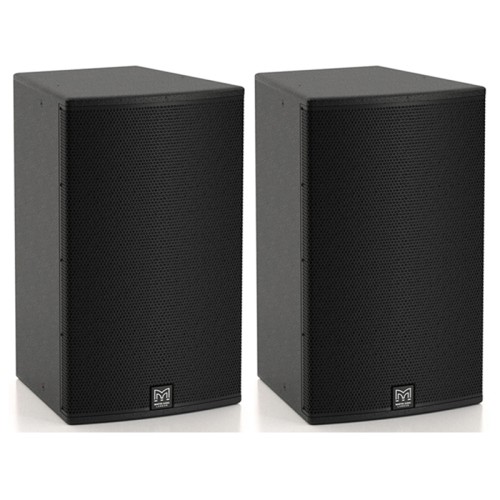

Martin Audio V.12 12" Passive Two-Way On-wall KTV Loudspeaker/pair

With the new V·Series, Martin Audio engineers have designed a range of premium full-range loudspeakers specifically for small-medium scale entertainment installations and family KTV. Three, passive two-way systems — the V.10, V.12 and V.15 —combine the Martin Audio signature sound of warmth, clarity and smooth response with the vocal presence required for a great Karaoke experience.

Features

Full-range, passive two-way system

KTV specific voicing

Enhanced bass response from rear port

LF driver with demodulating ring for distortion-free vocals

User-rotatable horn

Vertical and horizontal mounting option

Cloth-backed perforated steel grille

Trapezoid enclosure with textured finish

8Ω nominal impedance

Internal crossover network with LF and HF driver protection

Twin NL4 connectors

Multiple M8 rigging inserts

Specification

TYPE Compact, passive two-way system

FREQUENCY RESPONSE (5) 62Hz-20kHz ± 3dB,

-10dB @ 47Hz

DRIVER

LF: 12” (300mm)/2.5” (63.5mm) voice coil, ferrite motor system

HF: 1” (25mm) exit/1.4” (35mm) voice coil, polyimide dome compression driver

RATED POWER (2) 600W program, 1200W peak

SENSITIVITY (8) 99dB

MAXIMUM SPL (9) 127dB program, 130dB peak

NOMINAL IMPEDANCE 8Ω

DISPERSION (-6DB) 80° H x 50° V (user-rotatable)

CROSSOVER 2.5kHz passive

ENCLOSURE Trapezoid

FINISH Black textured paint

PROTECTIVE GRILLE Black perforated steel with scrim cloth backing

CONNECTORS 2 x NL4 type

PIN CONNECTIONS (INPUT) 1+/1-

PIN CONNECTIONS (LINK) 1+/- to 1+/-

FITTINGS 14 x M8 inserts

DIMENSIONS

(W) 357mm x (H) 600mm x (D) 385mm

(W) 14.1ins x (H) 23.6ins x (D) 15.2ins

Applications

Family and Premium KTV

Music bars
