Shure ULXD24/KSM8 Mic Wireless

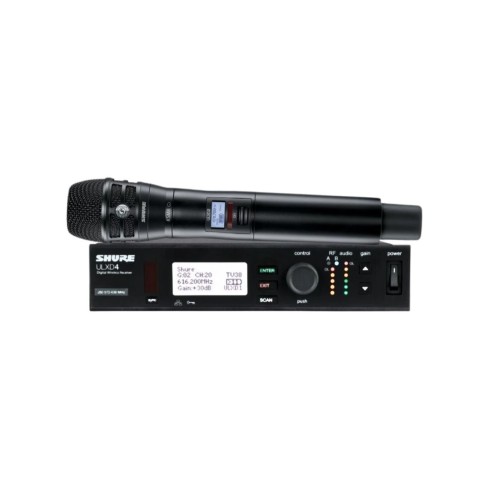

Shure ULXD24/K8B G51 wireless voice microphone system

Wireless Voice Microphone System consisting of:

Wireless digital receiver ULXD4

• G51 frequency band (470 – 534 MHz)
• Digital Predictive Switching Diversity
• Up to 72 MHz RF bandwidth (depending on region)
• Optimized scanning to automatically identify and prioritize the cleanest frequencies
• Interference detection and alerts
• Up to 17 active transmitters on a 6 MHz TV band or 22 on 8 MHz
• In High Density mode: up to 47 active transmitters on 6 MHz and 63 on 8 MHz
• Compatible with external controllers such as AMX or Crestron
• Gain adjustable up to 60 dB
• 24-bit / 48 kHz digital audio processing
• Flat response frequency range: 20 Hz – 20 kHz
• Dynamic range of over 120 dB
• AES 256 bit encryption for secure wireless transmission
• Connectable and controllable via network
• Intuitive LCD menu and controls on the front panel with various locking options, plus LED audio and RF indicators with peak indicator
• Audio outputs: XLR mic/line level and balanced 6.35 mm jack
• RF inputs: BNC
• RJ45 connector
• External power supply: 240V AC - 15V DC

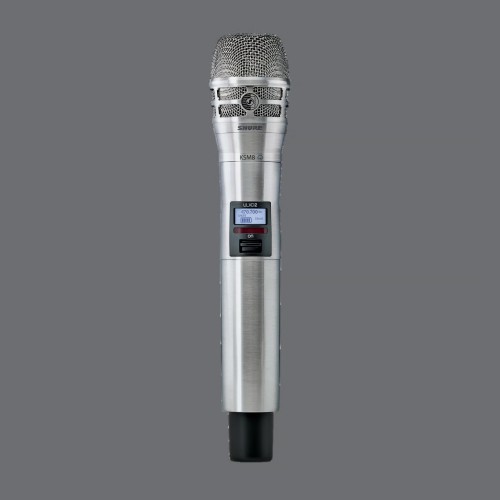

ULXD2 Portable Digital Transmitter with RPW174 KSM8 B Capsule

• G51 frequency band (470 – 534 MHz)
• 256-bit AES encryption for applications that require secure transmission
• External charging contacts for docking charging
• The transmitter's Mute mode turns the on/off switch into a mute switch, allowing the sound to be muted while keeping the RF channel present
• Backlit LCD with easy-to-navigate menu and controls
• Rugged Metal Construction Dualdyne Dynamic Capsule with Dual Diaphragm Technology - RPW174 KSM8 B
• Frequency and power lock
• Transmitter frequency range: 30 Hz - 20 kHz
• Selectable transmission power: 1 / 10 / 20 mW
• Rechargeable lithium-ion battery SB900 (optional, not included in delivery)
• Autonomy: up to 10 hours of use on SB900A lithium-ion battery, up to 9 hours of use on alkaline batteries (2 AA)
• Accessories included: cover and nut for the microphone
