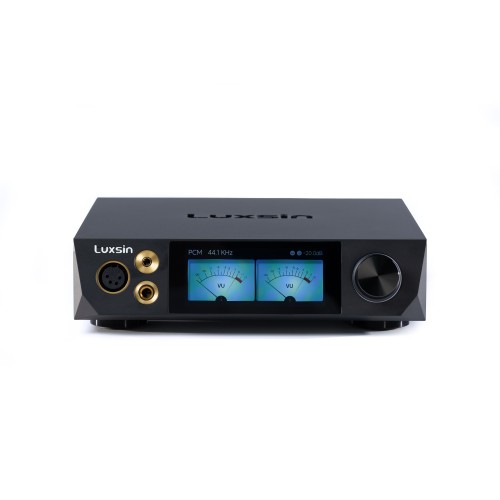

Luxsin X8 Intelligent DAC & Headphone Amplifier

The Luxsin X8 Intelligent DAC and Headphone Amplifier is built around a true dual-mono parallel DAC architecture using eight Cirrus Logic CS43198 DAC chips — four per channel, operating in parallel with fully independent power supplies, circuit layouts, and signal paths. This topology reduces the noise floor through analog summation while improving dynamic range, signal-to-noise ratio, and low-level resolution across the audible band. Each DAC chip is individually shielded from digital circuitry and high-frequency interference, with a dedicated high-speed buffering and clock distribution system keeping all eight chips locked to the same reference clock domain.

Digital Processing

The X8 introduces Luxsin’s proprietary Digital Audio Core, a processing platform built on a dual-core HiFi-5 DSP and ARM architecture running above 500 MHz. The large on-chip SRAM and processing headroom support real-time audio processing, system tuning, and future feature expansion including edge-level AI audio processing — making the X8 a platform that improves over time rather than a static product.

Intelligent EQ and Headphone Optimization

AI-assisted parametric EQ tuning allows users to adjust sound character through voice or text commands via a mobile app or web interface. The HP-EQ system goes further: a hardware-level headphone EQ solution that matches the connected headphone’s frequency response to target curves using a database of more than 2,500 headphone models. This is not a generic bass boost or treble shelf — it is a per-model correction system.

Headphone Amplification

The amplification stage uses multiple OPA1612 op-amps and TPA6120A2 high-current drivers to independently power each channel, delivering high output current, low distortion, and fast transient response. The balanced XLR pre-output reaches 4.2 Vrms per channel. A full-interface impedance detection system automatically measures headphone impedance and adjusts gain across all outputs — isolated from the audio signal path to prevent measurement artifacts from degrading playback.

Power Supply

A fully separated linear power supply provides independent digital and analog rails with real-time monitoring and selectable analog voltage operation (12V / 15V) for optimized noise isolation and system control.

Interface and Control

The X8 features a 4.0-inch full-color touchscreen (960 x 480) tilted at 15 degrees for desktop ergonomics. Control extends to iOS and Android apps, a web-based interface for macOS and Windows, optional IR remote, and support for both local and online firmware updates. Per-output user profiles store individual EQ and gain settings.

Connectivity

Digital inputs include USB-B, USB-C, optical, coaxial, and IIS. Analog outputs include balanced XLR and single-ended RCA pre-outs (the X8 doubles as a preamplifier) alongside multiple headphone outputs. A 12V trigger input/output enables automated power management within a larger system. Wireless connectivity adds a Bluetooth 5.1 audio input (AAC / SBC) and dual-band Wi-Fi for app control and updates.
