WiiM AMP Ultra Streaming Amplifier with Premium ESS ES9039Q2M DAC
- Brand: Wiim
- Product Code:Streaming Amplifier with Premium ESS ES9039Q2M DAC
- Availability:In Stock
-
Price: Rp0

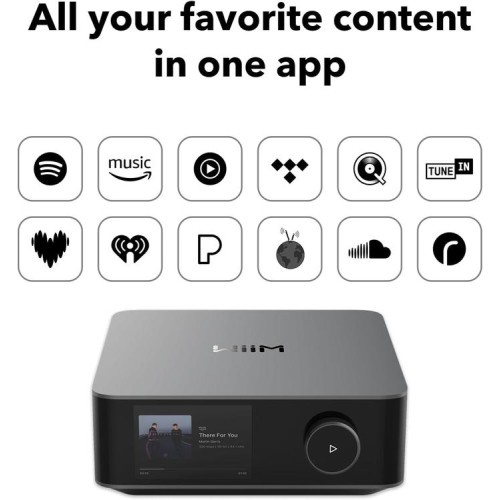

The WiiM Amp Ultra is a compact, feature-packed streaming amplifier delivering 100W per channel into 8 ohms with an advanced ESS ES9039Q2M DAC and a 3.5-inch touchscreen.
Full specifications for the WiiM Amp Ultra Specs page include:
Audio & Performance
- Power Output: 100W per channel @ 8Ω; 200W per channel @ 4Ω
- Amplification: Dual Texas Instruments TPA3255 Class-D with PFFB (Post-Filter Feedback) technology
- DAC Chip: ESS ES9039Q2M SABRE DAC
- Op-Amps: Six TI OPA1612 op-amps
- Audio Metrics: ≤ 0.005% (-106 dB) THD+N; ≥ 120 dB SNR
- File Support: Bit-perfect playback up to 24-bit/192kHz PCM
Inputs & Outputs
- Digital Inputs: HDMI ARC (with Dolby Digital 5.1), Optical (TOSLINK)
- Analog Inputs: 1x Stereo RCA line-in
- Outputs: Speaker binding posts, 1x RCA Subwoofer/LFE mono output, USB Out.
Connectivity & Control
- Wireless: Wi-Fi 6E, Bluetooth 5.3 (receiver and transmitter with LE Audio)
- Wired: Ethernet port
- User Interface: 3.5″ glass-covered touchscreen, WiiM Home app, and Voice Remote.
Physical & Build
- Dimensions: 7.87 × 8.3 × 3 inches (200 × 211 × 76 mm)
- Weight: 2.45 kg (5.4 lbs)
- Cooling: Copper heat pipe, aluminum heatsink, and precision PID thermal control
