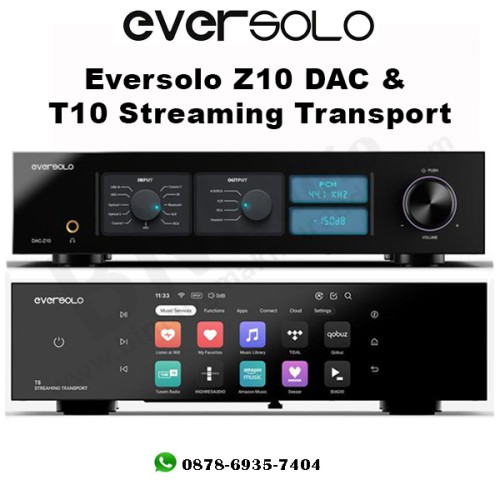

Eversolo Z10 DAC & T10 Streaming Transport

Technical Specification DAC Z10
Model Eversolo DAC-Z10
Display 8.8" IPS
Chassis Material Aluminium alloy
Main Processor DCP8568
DAC Left Channel: AK4191+AK4499
Right Channel: AK4191+AK4499
Audio Processor Multi-core USB audio processor
OPA Chip OPA1612
Power Triple ultra-low noise linear power supplies
Bluetooth Audio Input Qualcomm QCC5125 Bluetooth module, Bluetooth version: BT5.0; supports SBC/AAC Bluetooth audio protocols
USB-B Audio Input Compatible with Windows 10 and above, macOS, Android, and iOS; supports up to Stereo DSD512 / PCM 768kHz 32Bit
IIS Input Supports 8 mode configurations, up to Stereo DSD512 / PCM 768kHz 32Bit
AES/EBU Input Up to Stereo PCM 192KHz/24Bit / DSD64 DoP
Optical Audio Inputs *2 Up to Stereo PCM 192KHz/24Bit / DSD64 DoP
Coaxial Audio Inputs *2 Up to Stereo PCM 192KHz/24Bit / DSD64 DoP
ARC Input Up to Stereo PCM 192KHz/24Bit
Analog Audio Inputs XLR (Balanced), RCA
Analog Audio Outputs Pre-out: XLR (Balanced), RCA; Headphone out: 6.35mm single-ended
External Clock Input Supports 10M/25M clock inputs with 50Ω or 75Ω impedance
Recommended Headphone Impedance 16–300Ω (Low Gain: 16–32Ω / High Gain: 32–300Ω)
