MIdas M32LIVE Mixer Digital
- Brand: Midas
- Product Code:Mixer Digital
- Availability:In Stock
-
Price: Rp57,500,000

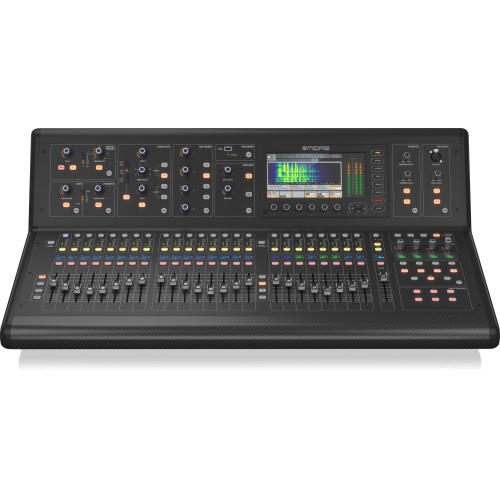

The Midas M32 LIVE is a 40-input, 25-mix-bus digital mixing console designed for live sound and studio recording.
Core Specifications
- Input Channels: 40 simultaneous input channels (32 mono mic/line inputs + 6 auxiliary inputs + 2 return channels).
- Preamps: 32 Midas PRO microphone preamplifiers.
- Mix Buses: 25 phase-coherent, time-aligned mix buses (16 auxiliary, 6 matrix, and main LR).
- Faders: 25 100mm motorized faders (rated for 1 million cycles).
- Display: 7-inch full-color TFT display and 29 programmable LCD Scribble Strips.
- Processing: 40-bit floating-point digital signal processing (DSP).
Connectivity & Audio Interface
- Local I/O: 32 XLR inputs, 16 XLR outputs, 6 TRS auxiliary inputs/outputs, 2 headphone outputs, and talkback mic input.
- Networking: Dual AES50 ports supporting up to 96 inputs and 96 outputs per port, allowing connection to remote stage boxes like the DL16 or DL32.
- Recording/Playback: Pre-installed Klark Teknik DN32-LIVE expansion card for 32x32 channel USB 2.0 audio interface and dual SD/SDHC card direct multitrack recording/playback.
- Personal Monitoring: Ultranet port for connecting Powerplay P16 personal monitor mixers.
Physical Dimensions & Weight
- Dimensions: 891 x 607 x 256 mm (35.1 x 23.9 x 10.1 inches)
- Weight: 24.5 kg (54 lbs)
- Build: High-performance carbon fiber, aluminum, and steel space-frame chassis.
