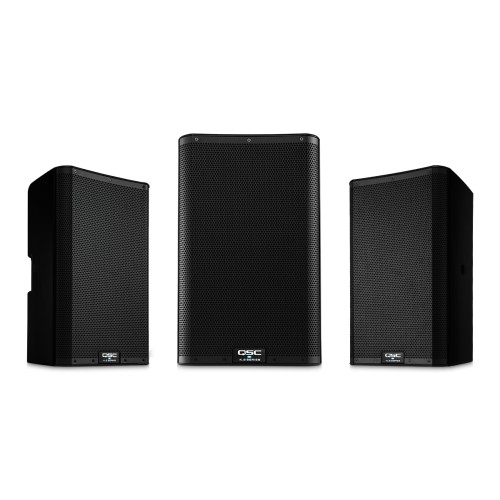

| Configuration | Multi-purpose, 2-way active loudspeaker |
| LF Transducer | 254 mm (10-inch), cone |
| HF Transducer | 35.6 mm (1.4-inch) titanium diaphragm compression driver |
| Frequency Response (-6 dB) | 56 Hz - 20 kHz |
| Frequency Range (-10 dB) | 50 Hz - 20 kHz |
| Nominal Coverage Angle | 90° Axisymmetric |
Maximum Rated SPL1
Amplifier
Cooling | 130 dB @1 M, peak 124 dB @ 1 M, continuous
Class D
Peak: 1800 W (LF), 225 W (HF)
Low-noise, variable speed fan |
| Controls | Power
3 × Level
Rotary encoder (push)
2 × selection buttons |
| Indicators | Monochrome LCD Display 45 mm × 25.4 mm (1.75-inch x 1-inch)
2 × Power LED (front and rear)
3 × Input Signal LED
Input A Mic selected LED
Input B Hi-Z selected LED
Limiter active LED |
| Connectors | 2 × locking XLR/F ¼⁻ᶦⁿᶜʰ combo (Mic/Line Input and Hi-Z/Line Input
1 × 3.5 mm TRS (Stereo Input)
2 × XLR/M (Loop-thru Output)
1 × XLR/M (Mix Output)
1 × locking IEC power connector |
| AC Power Input | Universal power supply 100 – 240 VAC, 50 – 60 Hz |
| AC Power Consumption 1/8th Power2 | 100 VAC, 2.1 A / 120 VAC, 1.9 A / 240 VAC, 1.1 A |
| AC Power Consumption - Standby | 0.2 A at any voltage |
| Enclosure Details | |
| Enclosure | Impact Resistant ABS |
| Attachment Points | 2 × M10 threaded inserts plus Pull-Back |
| Color | Black (RAL 9011) |
| Grille | 18 Gauge powered coated steel, internal cloth lining |
| Speaker Dimensions (H×W×D) | 519 × 320 × 300 mm
20.4 × 12.6 × 11.8 in |
| Carton Dimensions (H×W×D) | 570 × 440 × 406 mm
22.5 × 17.3 × 16 in |
| Net Weight | 14.5 kg / 32 lb |
| Shipping Weight | 17.6 kg / 38.8 lb |
| Regulatory | CE, WEEE, UL, China RoHS, RoHS II, FCC Class B |
| Optional Accessories | K10 Tote, K10 Outdoor Cover
M10 Kit-C, K.2-LOC Lock Out Cove
K10.2 Yoke |
