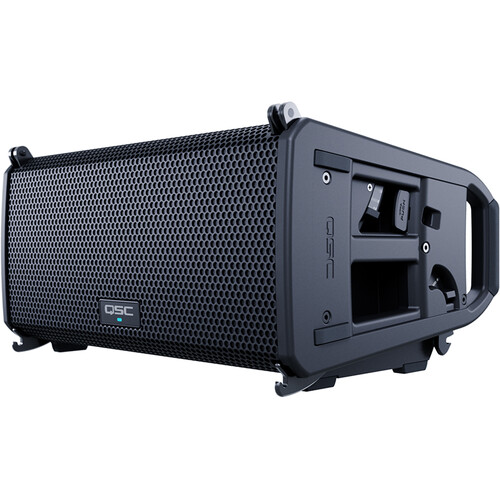

QSC LA 108 1300W Active 8" Line Array Loudspeaker (Black)

  • Brand: QSC
  • Product Code:Line Array Loudspeaker
  • Availability:In Stock

  • Price: Rp51,000,000


QSC LA108 Specs

Key Specs
Speaker Type
Active Line Array Loudspeaker
Configuration
2-Way
Total Output Power
1300 W Peak
LF Driver
1x 8" / 20.3 cm Woofer
HF Driver
1x 1.75" / 44 mm Compression Driver
Frequency Range/Response
57 Hz to 20 kHz (-10 dB)
62 Hz to 20 kHz (-6 dB)
Speaker Type
Active Line Array Loudspeaker
Configuration
2-Way
Enclosure Type
Bass-Reflex
Total Output Power
1300 W Peak
Amplifier Power Rating
Low Frequency (LF)
1000 W
Mid Frequency (MF)
300 W
Amplifier Class
Class-D
Drivers
LF Driver
1x 8" / 20.3 cm Woofer
HF Driver
1x 1.75" / 44 mm Compression Driver
Performance
Frequency Range/Response
57 Hz to 20 kHz (-10 dB)
62 Hz to 20 kHz (-6 dB)
Maximum SPL
134 dB (Peak)
Coverage Angle
100° H x 15° V
Signal Processing
EQ & Filters
High-Pass Filter
Dynamic Processing
Limiter
Alignment Delay
No
Digital Signal Processing
No
Connectivity
Audio I/O
1x XLR 3-Pin Line Input
1x XLR 3-Pin Line Thru
Network I/O
2x RJ45 (Dante)
USB I/O
No
Wireless
No
Mobile App Compatible
Yes: iPadOS Only
App Name: QSC SysNav
Power
AC Input Power
100 to 240 VAC, 50 / 60 Hz
AC Power I/O
1x powerCON Input
1x powerCON Output
Current Consumption
100 VAC: 0.8 A (1/8 Power)
120 VAC: 0.75 A (1/8 Power)
230 VAC: 0.5 A (1/8 Power)
Physical
Color
Black
Mounting
Stand Mount
1 x Dual-Angle Pole Socket - Unspecified Size (Bottom)
Suspension Points
M10 Fly Point - Unspecified Quantity (Rear)
Construction Material
ABS, Metal Grille
Environmental Resistance
No
Dimensions
20.4 x 14.7 x 10.7" / 51.8 x 37.3 x 27.2 cm
Weight
30.1 lb / 13.7 kg
Packaging Info
Package Weight
39.085 lb
Box Dimensions (LxWxH)
22.2 x 20.4 x 13.7"
