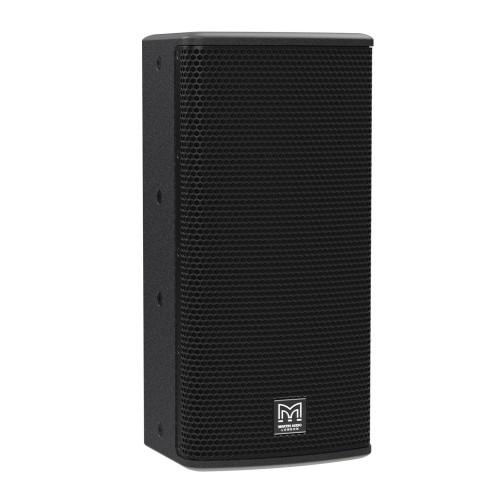

Martin Audio Blackline Q8 Ultra-compact two-way Speaker Pasif /PAIR

Qty

Specification

Type	Ultra-compact, passive two-way loudspeaker
Frequency response [1]	67 Hz – 17 kHz ± 3 dB, -10 db @ 51 Hz
Driver (LF)	8” (200 mm) with 2” (50 mm) voice coil, ferrite motor system
Driver (HF)	1" (25 mm) exit compression driver with 1" (25 mm) voice coil, PETP dome
Rated power [2]	200 W AES, 800 W peak
Required electronics	Processor and amplifier, or a combined amplifier-processor unit
Recommended electronics	DX0.4, DX0.6 or DX4.0 system processor and VIA amplifier, or iKON amplifier-processor
Sensitivity [3]	92 dB
MAXIMUM SPL [3]	115 dB continuous, 121 dB peak, 127 dB peak with crest factor 4
Nominal impedance	8 ohm
Dispersion	Dispersion: 90°–110° (horizontal) × 50° (vertical)
	User-rotatable Differential Dispersion horn
Crossover	3 kHz passive
Enclosure	Symmetrical multi-angle plywood
Finish	Black textured paint
Protective grille	Black perforated steel grille with scrim cloth backing
Connectors	2 x NL4 connectors
Pin connections (input)	1+/1–
Pin connections (link)	1+/1– to 1+/1– and 2+/2– to 2+/2–
Fittings	15 x M8 inserts, 6 x M6 inserts for wall bracket
	1 x pocket handle made from recycled ABS
	Pole-mount socket with removable cover
Dimensions	(W) 236 mm x (H) 500 mm x (D) 250 mm
	(W) 9.3 in x (H) 19.7 in x (D) 9.8 in
Weight	10.1 kg (22.3 lbs)

Price: Rp26,350,000
